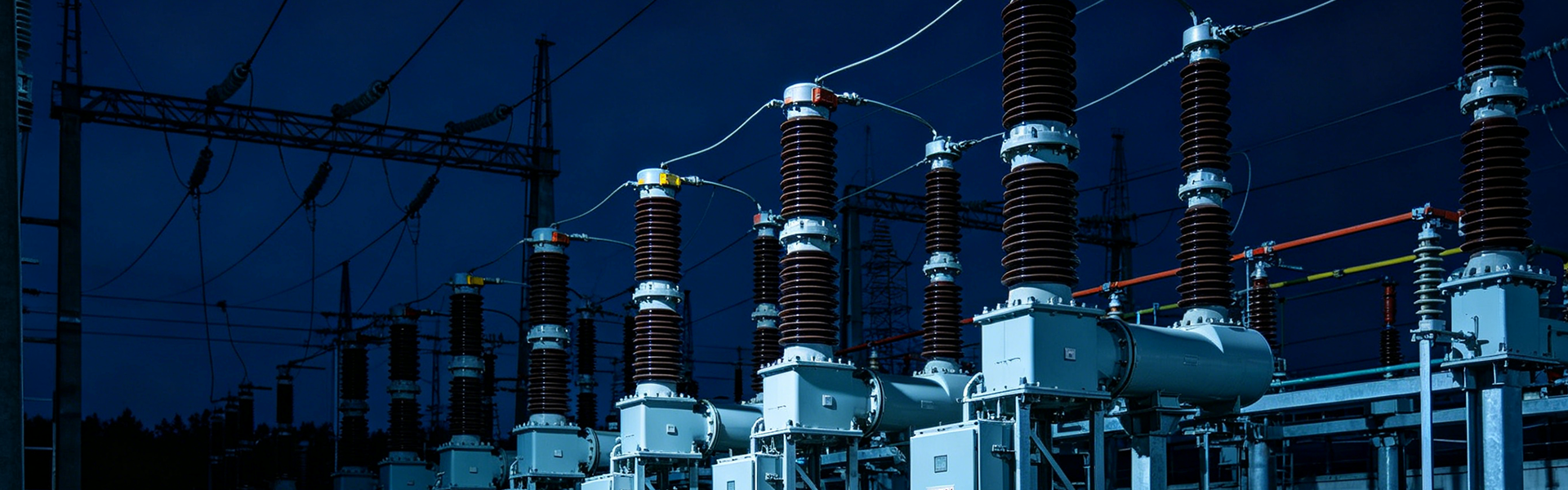

Zinc Oxide for Varistors & MOV Surge Arrestors
ZnO is the active matrix of multilayer varistors (MLV) and metal-oxide varistors (MOV) used in surge protection circuits. The non-linear current-voltage characteristic that defines varistor behavior comes from grain-boundary potential barriers formed during sintering of ZnO with bismuth, antimony, and transition metal dopants. Used in surge arrestors, ESD protection, AC line filters, and high-voltage circuit protection.
Why Zinc Oxide for This Application
Function-by-function breakdown of how ZnO contributes to the final formulation.
- Non-Linear V-I Characteristic — Sintered ZnO grains develop ~3 eV potential barriers at grain boundaries from segregated Bi₂O₃ and dopants. Current rises by 5–6 orders of magnitude when applied voltage exceeds the breakdown threshold — exactly what surge protection demands.
- High Energy Absorption — ZnO varistor blocks absorb 10–10,000 Joules per cm³ depending on disc thickness and dopant package. This is orders of magnitude higher than competing technologies like silicon avalanche diodes for comparable cost.
- Bidirectional Symmetric Response — The ZnO grain-boundary barrier is symmetric — varistors respond identically to positive and negative surges, ideal for AC line protection without needing back-to-back diode arrays.
- Self-Healing After Surge — Unlike a fuse, ZnO varistors recover their high-impedance state after the surge passes — only catastrophic over-energy permanently degrades the device. Lifetime is typically 10⁵–10⁷ surge events depending on stress level.
Recommended Grade & Dosage
Pair the right purity tier and surface treatment with the production process.
Electronic Grade Zinc Oxide
≥99.95% pure ZnO with Pb ≤5 ppm and Cd ≤3 ppm — controlled by ICP-MS lot-by-lot. Heavy metal contamination disrupts the grain-boundary breakdown behavior and shifts the V-I curve out of specification. D50 0.3–0.8 μm gives consistent firing density.
| Parameter | Value |
|---|---|
| ZnO Matrix Content | 90 – 95 wt% of starting powder blend |
| Co-Dopants | Bi₂O₃ 0.5–1%, Sb₂O₃ 0.5–1%, Co₂O₃ 0.1–0.5%, MnO₂ 0.1–0.5%, Cr₂O₃ 0.05–0.2%, NiO 0.1–0.3% |
| Optional | B₂O₃ or SiO₂ as sintering aid 0.05–0.2% |
| Final ZnO Phase in Sintered Block | 95–97% by volume |
Formulation & Process Notes
Working parameters and process control points from production experience.
| Parameter | Value |
|---|---|
| Powder Preparation | Wet ball mill ZnO + dopants in deionized water 16–24 h; spray-dry to flow agglomerates |
| Pressing | Uniaxial press at 50–150 MPa, then cold isostatic press 100–200 MPa for high-uniformity blocks |
| Sintering Profile | 1100–1200 °C × 2–4 h in air; controlled cooling 50–100 °C/h through 700 °C to allow Bi₂O₃ phase segregation |
| Firing Density Target | 5.5 – 5.65 g/cm³ (96–99% of theoretical 5.61 g/cm³) |
| Electrode Application | Silver paint or sputter-deposited Ag/Al, fired at 600–800 °C |
| Final Test | 1 mA breakdown voltage, leakage current at 0.75 × Vnom, energy absorption capacity per IEC 61643 |
Frequently Asked Questions
+Why is heavy-metal purity (Pb, Cd) so critical for varistor ZnO?
Pb and Cd substitute into the ZnO lattice and disrupt the grain-boundary potential barrier formation. Even 50–100 ppm Pb can shift breakdown voltage by 5–15%, push leakage current up, and reduce the non-linear coefficient (alpha) — all critical varistor specs. ≥99.95% with Pb ≤5 / Cd ≤3 ppm is the production baseline; some high-reliability automotive or grid-scale varistors require Pb ≤3 ppm.
+What controls the breakdown voltage of the finished varistor?
Breakdown voltage = number of grain boundaries × ~3 V per boundary. Smaller ZnO grain size (set by starting D50 and sintering schedule) means more boundaries per mm thickness, giving higher V/mm. Typical commercial range: 100–800 V/mm thickness.
+Does the dopant package vary by varistor end use?
Yes — MOV for AC line protection prioritizes high energy absorption (higher Bi₂O₃, larger grain) while ESD protection MLVs prioritize fast response time (lower grain size, optimized Sb₂O₃). Each varistor manufacturer has a proprietary dopant recipe but all start from the same purity-class ZnO matrix.
+Can we supply ZnO with custom alkali (Na, K) specification?
Yes — Na and K can be specified to ≤10 ppm each on prior agreement. Alkali metals enrich at grain boundaries during sintering and shift varistor V-I curve in ways that can be production-limiting for some recipes.
